Ultrasonic Flow Meter: A Comprehensive Guide

Updated: May 4

In various industries, accurate measurement of fluid flow is crucial for efficient and effective processes. To achieve this, many types of flow meters have been developed, including the ultrasonic flow meter. The ultrasonic flow meter is widely used due to its non-intrusive nature, high accuracy, and reliability. In this blog, we will explore the working principle, types, applications, advantages, disadvantages, and price of the ultrasonic flow meter.

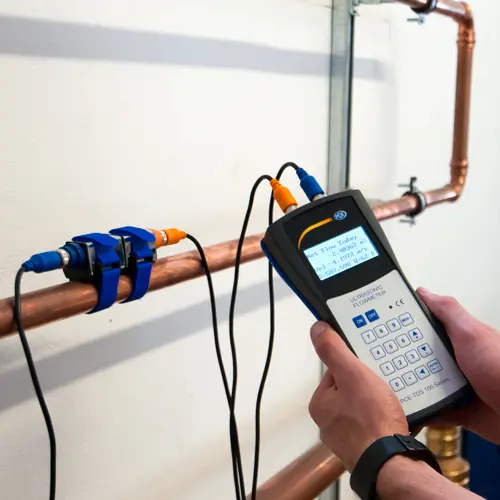

Ultrasonic Flow Meter
Ultrasonic Flow Meter

Working Principle of Ultrasonic Flow Meter:


Ultrasonic flow meters use the principle of measuring the time of flight of sound waves to determine the velocity of a fluid. The flow meter consists of two transducers that are placed on opposite sides of the pipe. One transducer sends an ultrasonic signal that travels through the fluid to the second transducer. The second transducer receives the signal and measures the time it took for the signal to travel between the two transducers. The difference in the time of flight of the signal between the two transducers is directly proportional to the velocity of the fluid.


Types of Ultrasonic Flow Meters:


There are two main types of ultrasonic flow meters, namely transit-time and Doppler flow meters.

  1. Transit-time Flow Meters:

Transit-time flow meters measure the time it takes for an ultrasonic signal to travel from one transducer to the other in both the upstream and downstream directions. The velocity of the fluid is determined by calculating the difference in the time of flight of the signal in the two directions. Transit-time flow meters are commonly used for clean fluids with low concentrations of suspended solids.

  1. Doppler Flow Meters:

Doppler flow meters measure the frequency shift of an ultrasonic signal reflected by particles or bubbles in the fluid. The velocity of the fluid is determined by the frequency shift of the signal. Doppler flow meters are commonly used for fluids with high concentrations of suspended solids or bubbles.


Applications of Ultrasonic Flow Meters:


Ultrasonic flow meters are used in various applications, including:

  1. Water and Wastewater Treatment:

Ultrasonic flow meters are used to measure the flow rate of water and wastewater in treatment plants.

  1. Chemical Processing:

Ultrasonic flow meters are used to measure the flow rate of chemicals in chemical processing plants.

  1. Oil and Gas Industry:

Ultrasonic flow meters are used to measure the flow rate of oil and gas in pipelines.

  1. HVAC:

Ultrasonic flow meters are used to measure the flow rate of water in HVAC systems.


Advantages and Disadvantages of Ultrasonic Flow Meters:


Advantages:

  1. Non-intrusive: Ultrasonic flow meters do not require direct contact with the fluid, making them ideal for use with corrosive or abrasive fluids.

  2. High Accuracy: Ultrasonic flow meters have high accuracy, typically within ±1%.

  3. Wide Range of Fluids: Ultrasonic flow meters can be used with a wide range of fluids, including liquids and gases.

  4. Low Maintenance: Ultrasonic flow meters are easy to install and require minimal maintenance.

Disadvantages:

  1. Price: Ultrasonic flow meters can be more expensive than other types of flow meters.

  2. Limited Application: Ultrasonic flow meters may not work well with fluids that have low ultrasonic reflectivity, such as distilled water.

  3. Limited Pipe Size: Ultrasonic flow meters may not be suitable for very small or very large pipe sizes.

Price of Ultrasonic Flow Meters:

The price of ultrasonic flow meters varies depending on the type, size, and brand. A portable ultrasonic flow meter can cost anywhere between $1,000 to $10,000, while a fixed ultrasonic flow meter can cost between $5,000 to $20,000 or more. The price may also vary based on the features and capabilities of the flow meter, such as the ability to measure flow in bi-directional or multi-path configurations.


Portable Ultrasonic Flow Meters:


Portable ultrasonic flow meters are ideal for temporary or mobile applications where a fixed installation is not practical. These flow meters are battery-powered and can be easily moved from one location to another. They are commonly used for testing, commissioning, or troubleshooting flow systems. Portable ultrasonic flow meters are also useful for verifying the accuracy of fixed flow meters or for temporary flow measurements during maintenance or repairs.


In summary, ultrasonic flow meters are versatile and reliable instruments used to measure the flow of fluids in a non-invasive way. They are used in various industries such as oil and gas, water treatment, and chemical processing. The advantages of ultrasonic flow meters include high accuracy, low maintenance, and non-intrusive installation. However, they may have some limitations such as high cost, limited pipe size, and limited application.

If you are looking to purchase an ultrasonic flow meter, it is important to consider your specific application requirements and select the appropriate type and model. There are many manufacturers of ultrasonic flow meters in the market, and it is important to choose a reputable supplier that can provide quality products and after-sales service.

Dhanbad Instruments Pvt. Ltd. is a trusted supplier of various types of flow meters, including ultrasonic flow meters. They offer a wide range of ultrasonic flow meters from different brands such as Emerson, Siemens, and Fuji. Dhanbad Instruments also provides installation, calibration, and maintenance services for their flow meters. You can visit their website at https://www.dhanbadinstruments.com/flow-meter to learn more about their products and services.


Conclusion:


Ultrasonic flow meters are widely used in various industries for their high accuracy, reliability, and non-intrusive nature. The working principle of ultrasonic flow meters is based on measuring the time of flight of sound waves to determine the velocity of a fluid. There are two main types of ultrasonic flow meters, namely transit-time and Doppler flow meters. Ultrasonic flow meters have several advantages, including non-intrusiveness, high accuracy, a wide range of fluids, and low maintenance. However, they also have some disadvantages, such as price, limited application, and limited pipe size. The price of ultrasonic flow meters varies depending on the type, size, and brand, with portable ultrasonic flow meters being less expensive than fixed ones. Emerson is a leading manufacturer of ultrasonic flow meters, offering a wide range of products for various applications.
