Optical Level

An optical level, also known as an auto level, is a surveying instrument that is used to determine the height and distance of different points on the land surface. It employs a telescope and a spirit level to provide accurate measurements. It is widely used in construction, civil engineering, and surveying projects. To use an optical level, first, the instrument is set up on a tripod and leveled using the built-in spirit level. Then, the telescope is aligned with a target and the height is read from a graduated scale on the instrument.

Optical Level

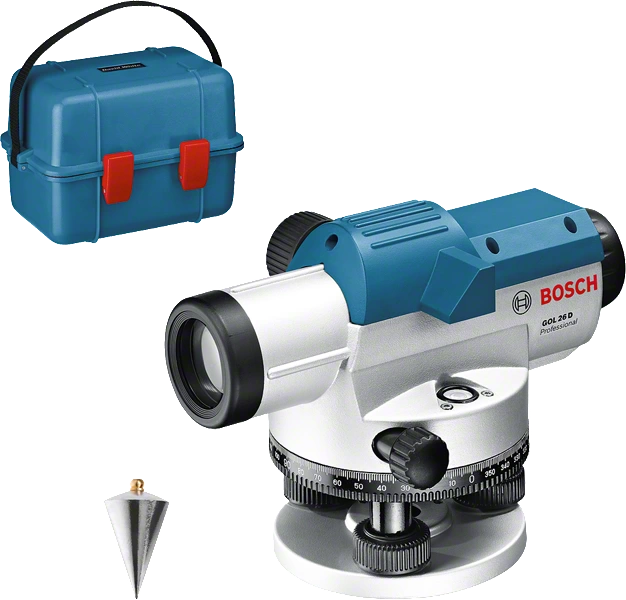

BOSCH OPTICAL LEVEL GOL 26 D PROFESSIONAL

BOSCH OPTICAL LEVEL GOL 26 D PROFESSIONAL

Order ID: GOL 26 D

The BOSCH OPTICAL LEVEL GOL 26 D PROFESSIONAL is a precise and reliable tool for measuring and aligning surfaces in construction and surveying. With a range of up to 100 meters and an accuracy of ±1.6mm at 30 meters, this optical level is suitable for both indoor and outdoor use. Featuring a robust and ergonomic design, the BOSCH OPTICAL LEVEL GOL 26 D PROFESSIONAL is a high-quality and durable tool for professionals in the field.

​

  • Accuracy: ± 1.6 mm at 30 m

  • Unit of measure: 360 degrees

  • Magnification: 26x

  • Working range: 100 m

  • Dust and splash protection: IP 54

  • Tripod thread: 5/8"

  • Operating temperature: -10 – 50 °C

  • Storage temperature: -20 – 70 °C

  • Weight: approximately 1.5 kg

Make: BOSCH

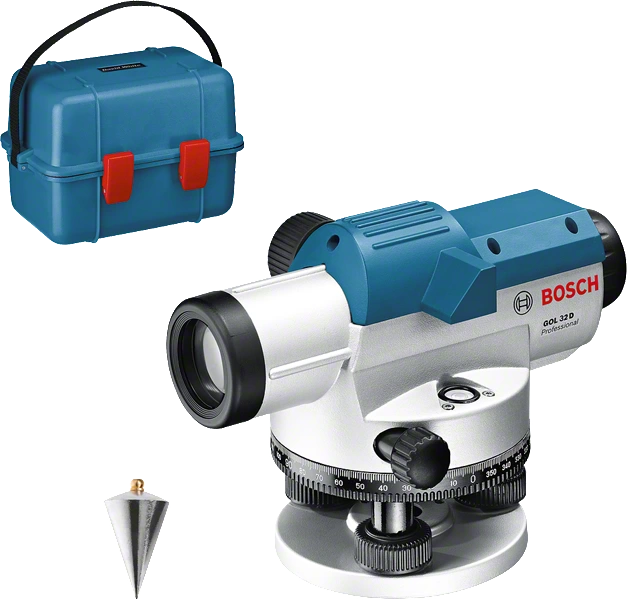

BOSCH GOL 32 D PROFESSIONAL

BOSCH OPTICAL LEVEL GOL 32 D PROFESSIONAL

Order ID: GOL 32 D

The BOSCH OPTICAL LEVEL GOL 32 D PROFESSIONAL is a precise and reliable tool for measuring and aligning surfaces in construction and surveying. With a range of up to 120 meters and an accuracy of ±1 mm at 30 meters, this optical level is suitable for both indoor and outdoor use. Featuring a robust and ergonomic design, the BOSCH OPTICAL LEVEL GOL 32 D PROFESSIONAL is a high-quality and durable tool for professionals in the field.

​

  • Accuracy: ± 1 mm at 30 m

  • Unit of measure: 360 degrees

  • Magnification: 32x

  • Working range: 120 m

  • Dust and splash protection: IP 54

  • Tripod thread: 5/8"

  • Operating temperature: -10 – 50 °C

  • Storage temperature: -20 – 70 °C

  • Weight: approximately 1.5 kg

Make: BOSCH

Buying Tips for Optical Levels and Auto Levels: A Guide to Choosing the Right Instrument for Your Construction Project

When it comes to construction projects, having accurate and reliable measurements is essential. That's where optical levels and auto levels come in. These tools allow for precise measurements of vertical and horizontal planes, making them essential for a variety of construction tasks. In this article, we will explore what an optical level is, how it works, how to use it, and some tips on buying one.

​

What is an Optical Level?

​

An optical level, also known as a dumpy level, is a precision instrument used for measuring vertical and horizontal planes. It consists of a telescope mounted on a tripod, which allows for precise measurements of the angle of inclination or elevation. The telescope is equipped with a spirit level, which helps to ensure that the instrument is level and accurate.

​

How Does an Optical Level Work?

​

The optical level works on the principle of a level line of sight. The instrument is set up on a tripod and leveled using the spirit level. The telescope is then pointed at a target, such as a staff or a leveling rod, which is positioned at a known height. The height of the target can then be determined by reading the scale on the leveling rod through the telescope. By taking multiple readings at different points, the level of the ground can be determined, and contours can be established.

​

How to Use an Optical Level?

​

Using an optical level requires some practice and skill, but with some basic knowledge, it can be mastered quickly. Here are some steps to follow:

​

  1. Set up the tripod: The tripod should be set up on a stable and level surface.

  2. Level the instrument: The instrument should be leveled using the spirit level on the telescope. Adjust the tripod legs to ensure that the instrument is level.

  3. Align the telescope: The telescope should be aligned with the target. Use the fine-tuning knobs to adjust the telescope until the target is in focus.

  4. Take a reading: Read the height of the target from the leveling rod through the telescope. Repeat this process at several points to determine the level of the ground.

  5. Record the readings: Record the readings on a surveying notebook or data collector.

​

Bosch Optical Level Kit and Prices

​

Bosch is a well-known brand in the construction industry, and they offer a range of optical levels and auto levels. The Bosch GOL 26 D Professional Optical Level is a reliable and easy-to-use instrument. It has a magnification of 26x and a range of 100 meters. The price of the Bosch GOL 26 D Professional Optical Level is around $280.

​

The Bosch GOL 32 D Professional is another excellent optical level that offers high accuracy and reliability. It has a magnification of 32x and a range of 120 meters. The price of the Bosch GOL 32 D Professional is around $360.

​

Bosch Auto Level Price

​

Bosch also offers a range of auto levels that provide even greater accuracy and ease of use. The Bosch GOL 26 G Professional Auto Level is a popular choice among professionals. It has a magnification of 26x and a range of 100 meters. The price of the Bosch GOL 26 G Professional Auto Level is around $550.

​

Tips on Buying an Optical Level or Auto Level

​

When buying an optical level or auto level, there are several things to consider:

​

  1. Magnification: The magnification of the instrument will determine how far it can see and how accurate the readings will be. Higher magnification levels are better for longer distances and greater accuracy.

  2. Range: The range of the instrument will determine how far it can measure. Make sure the range is sufficient for your needs.

  3. Accuracy: The accuracy of the instrument is crucial. Look for instruments that have a high level of accuracy, as this will ensure

  4. more reliable and precise measurements.

  5. Durability: Construction sites can be tough on equipment, so it's important to choose an instrument that is durable and can withstand harsh conditions.

  6. Brand reputation: Choose a brand with a good reputation in the construction industry. Brands such as Bosch, Leica, and Topcon are well-known for producing quality instruments.

  7. Accessories: Look for instruments that come with useful accessories, such as tripods, leveling rods, and carrying cases.

  8. Budget: Optical levels and auto levels can vary in price, so it's important to have a budget in mind. Consider the features you need and choose an instrument that fits within your budget.

  9. In conclusion, an optical level or auto level is an essential tool for construction projects that require precise measurements of vertical and horizontal planes. Bosch offers a range of reliable and accurate instruments, such as the Bosch GOL 26 D Professional Optical Level and the Bosch GOL 26 G Professional Auto Level. When buying an optical level or auto level, consider factors such as magnification, range, accuracy, durability, brand reputation, accessories, and budget. With these tips in mind, you can choose the best instrument for your needs and ensure accurate and reliable measurements on your construction projects.

​

​
