Industrial Borescope PCE-VE 270HR
Industrial Borescope PCE-VE 270HR

The industrial borescope provides you with fresh and unique visual insights into the inner workings of systems and motors.

press to zoom
Industrial Borescope PCE-VE 270HR
Industrial Borescope PCE-VE 270HR

The industrial borescope provides you with fresh and unique visual insights into the inner workings of systems and motors.

press to zoom
Industrial Borescope PCE-VE 270HR
Industrial Borescope PCE-VE 270HR

The industrial borescope provides you with fresh and unique visual insights into the inner workings of systems and motors.

press to zoom
Industrial Borescope PCE-VE 270HR
Industrial Borescope PCE-VE 270HR

The industrial borescope provides you with fresh and unique visual insights into the inner workings of systems and motors.

press to zoom
1/6

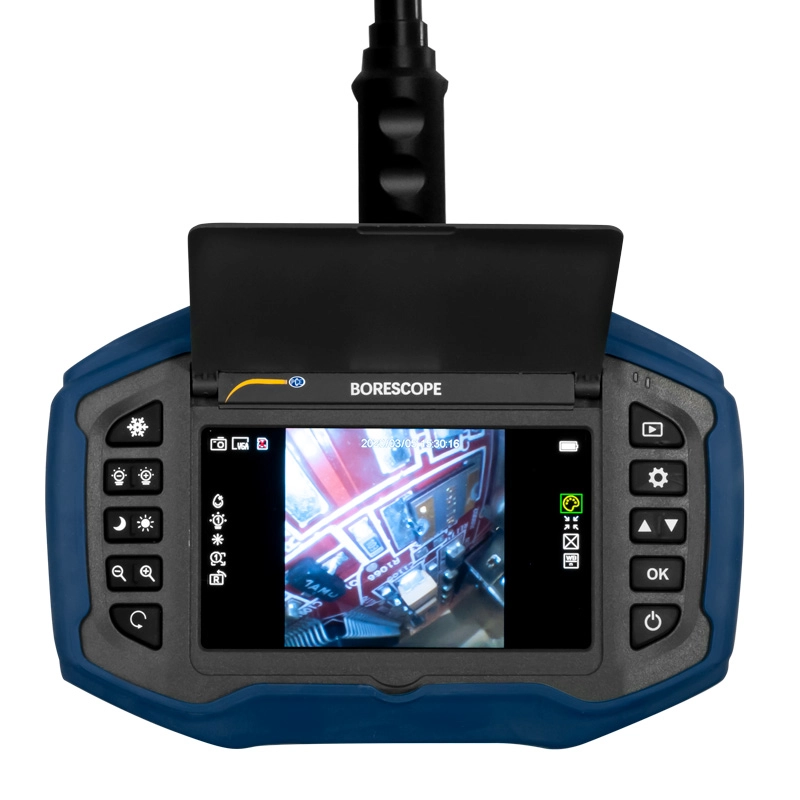

Industrial Borescope PCE-VE 270HR


Order No: PCE-VE 270HR

Description

The industrial borescope provides you with fresh and unique visual insights into the internal workings of systems and motors. In factories and other industrial settings, the inspection camera is the instrument of choice for performing maintenance and repairs. The use of an inspection camera to do optical examinations has never been simpler. Move the flexible cable so that it passes through a hole or hollow that is close to the area that needs to be examined, and then see everything that is happening on the display of the inspection camera. You can use this inspection camera to very easily and quickly identify weak spots and problem areas and, as a result, take preventative measures without having to first carry out complex disassembly. This is possible because the camera can be guided in different ways, is light, and has good optics.

This specific industrial borescope has a very tiny diameter of 2.8 millimetres (0.11 inches) and a length of 2000 millimetres (6.56 feet), so it may be used in a wide variety of applications. The inside of the cavities is illuminated by LEDs on the inspection camera. Waterproof cameras and lenses can be used in wet environments without fear of damage. Utilizing the inspection camera to do routine maintenance and checks on your operating systems and machinery will make your day-to-day tasks much simpler. A memory card may be used with the inspection camera to record still photos and video, which can then be utilised for documentation purposes. With the HDMI port, you can connect the inspection camera to any monitor you want.



  • 2 m / 6.56 ft cable length

  • 2.8 mm / 0.11" cable diameter

  • Storage function on micro SD card

  • LED light

  • 0° viewing angle

  • Miniature probe cable with 90° viewing angle option

Specifications

Cable length                                2000 mm / 6.56 ft

Cable type                                    flexible

Cable diameter                           2.8 mm / 0.11"

Degree of protection                  IP 67

Depth of field of view                 5 ... 50 mm / 0.2 ... 1.98"

Field of view                               120°

Angle of view                              0°

Lighting                                       4 LEDs

Exposure                                     automatic

Anti-reflective coating               automatic

Image sensor                             1/18" CMOS

Camera resolution                     400 x 400 Px

Display                                        5" TFT screen

Interface                                     Micro-USB, HDMI

Storage option                           Image and video

Storage                                       Micro SD memory card

Picture format                           JPEG (400 x 400 Px)

Video format                              MP4 (400 x 400 Px)

Video output                              HDMI

Menu navigation                       German, English, Chinese, Spanish, Portuguese, French, Russian, Japanese, Korean

Operating temperature            -10 ... +50 °C / 14 ... 122 °F

Power supply                            3.7 V Li-ion battery, 5200 mAh

Battery life                                 min. 6 h

Dimensions                               200 x 130 x 58 mm / 7.9 x 5.1 x 2.3"

Weight                                        595 g / 1.3 lb

Delivery Scope

1 x Industrial borescope PCE-VE 270HR
1 x Carrying case
1 x Charger
1 x HDMI cable
1 x Micro USB cable
1 x Stand
1 x Instructions
